Steyr 8110 Transmission


Steyr 8110 tractor photo
1984 - 1994
8100
Series:81108130
Transmissions overview
18-speed synchronized
36-speed partial power shift
24-speed synchronized with creeper
48-speed partial power shift
Transmission
Type:synchronized
Gears:18 forward and 6 reverse
Six gears (1-6) in three ranges (L/M/V) plus reverse range. In some areas sixth gears was not available, providing a total of 15 forward and 5 reverse.
Speeds

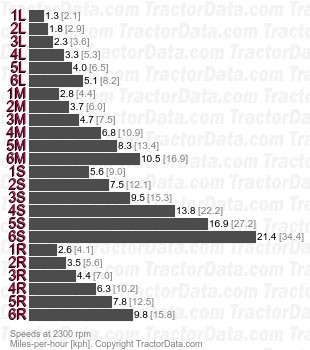

8110  synchronized speeds
Transmission
Transmission:Steyr-Matic
Type:partial power shift
Gears:36 forward and 12 reverse
Transmission
Type:synchronized with creeper
Gears:24 forward and 6 reverse
Additional creeper range (K) added to the basic transmission.
Speeds

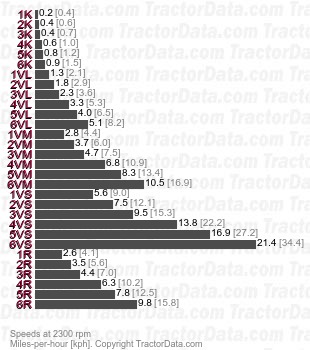

8110  synchronized with creeper speeds
Transmission
Transmission:Steyr-Matic
Type:partial power shift
Gears:48 forward and 12 reverse
