Farmall Super FC Engine


Farmall Super FC tractor photo
1951 - 1957
Engines overview
International Harvester 2.0L 4-cyl gasoline
International Harvester 2.0L 4-cyl diesel
distillate
Engine Detail
International Harvester C-123
gasoline
4-cylinder
liquid-cooled
Displacement123 ci
2.0 L
Bore/Stroke3.125x4.00 inches
79 x 102 mm
Coolant capacity13 qts
12.3 L
SparkplugChamption 15-A
 AC-85S
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.014 inches (hot)
0.356 mm
Exhaust valve clearance0.014 inches (hot)
0.356 mm
Engine Oil

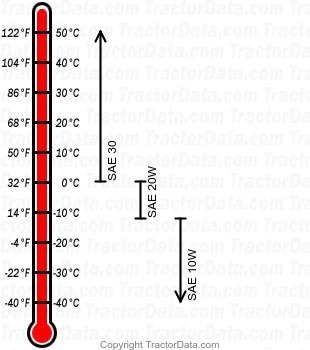

Super FC gasoline engine oil chart
Oil capacity5 qts
4.7 L
Engine Detail
International Harvester FD-123
diesel
4-cylinder
liquid-cooled
Displacement123 ci
2.0 L
Bore/Stroke3.125x4.00 inches
79 x 102 mm
Power25.6 hp
19.1 kW
Rated RPM1650
Engine Detail
distillate
