Production | |
Manufacturer: | McCormick-Deering (a part of International Harvester) |
Type: | Standard-tread tractor |

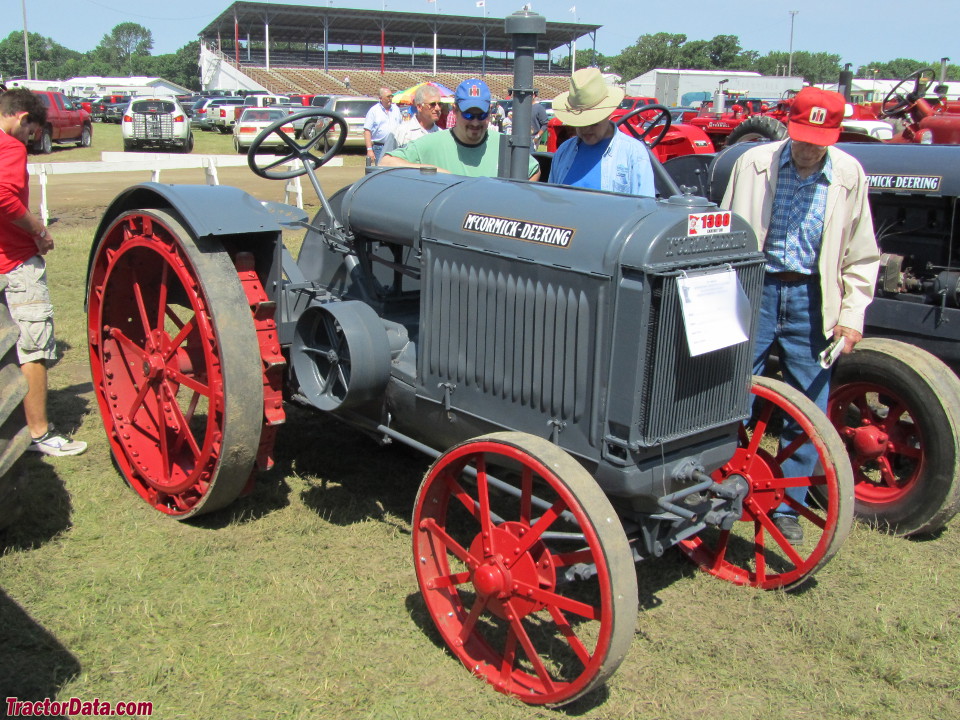

McCormick-Deering 10-20 Power | |
Drawbar (claimed): | 10 hp 7.5 kW |
Belt (claimed): | 20 hp 14.9 kW |
Drawbar (tested): | 19.60 hp 14.6 kW |
Belt (tested): | 24.8 hp 18.5 kW |
McCormick-Deering 10-20 Engine | |
International Harvester 4.6L 4-cyl kerosene | |
Fuel tank: | 14.5 gal 54.9 L |
Aux. fuel: | 0.75 gal 2.8 L |
Engine details ... |
Mechanical | |
Chassis: | 4x2 2WD |
Steering: | manual |
Cab: | Open operator station. |
Transmission: | 3-speed unsynchronized gear |
Transmission details ... |
Dimensions & Tires | |
Weight: | 3700 lbs 1678 kg |
Front tire: | 30x4.50 |
Rear tire: | 42x12 |
Full dimensions and tires ... |
10-20 Serial Numbers | |

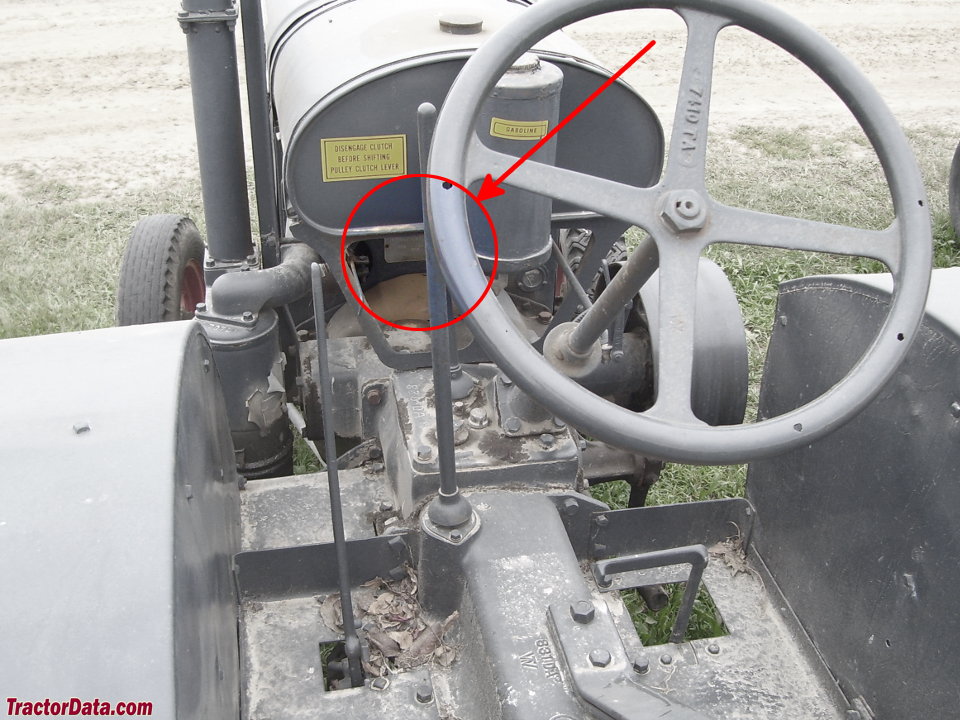

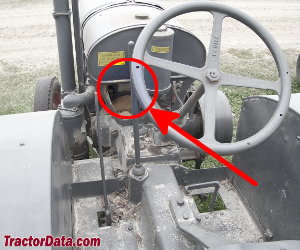

Location: | Below the tractor's fuel tank. |
1923: | KC501 |
1924: | KC7641 |
1925: | KC18869 |
1926: | KC37728 |
1927: | KC62824 |
1928: | KC89470 |
1929: | KC119823 |
1930: | KC159111 |
1931: | KC191486 |
1932: | KC201013 |
1933: | ----- |
1934: | KC204239 |
1935: | KC206179 |
1936: | KC207275 |
1937: | KC210235 |
1938: | KC212425 |
1939: | KC214886 |
Belt Pulley | |
Diameter: | 15.25 inches 38 cm |
Width: | 7 inches 17 cm |
RPM: | 661 |
