John Deere 5403 - engine

John Deere 5403 tractor photo
2007 - 2008   5003 Series
Utility tractor
Series back:John Deere 5303
more John Deere 5403 specifications...






Engine Detail:

 John Deere
 turbocharged diesel
 3-cylinder
 liquid-cooled
 179 ci [2.9 L]
Bore/Stroke:4.19x4.33 inches [106 x 110 mm]
Power:74 hp [55.2 kW]
Air cleaner:paper and felt
Compression:17.8:1
Rated RPM:2400
Firing order:1-2-3
Starter volts:12

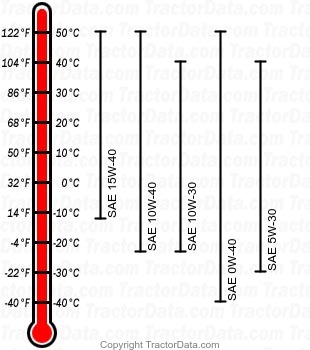

Oil capacity:9 qts [8.5 L]
Oil change:100 h
Coolant capacity:10 qts [9.5 L]
Coolant change:2000 h
Intake valve clearance:0.014 inches [0.356 mm]
Exhaust valve clearance:0.018 inches [0.457 mm]
