Tractors > John Deere > 7630

John Deere 7630 - transmission

John Deere 7630 tractor photo
2007 - 2011   7030 Series
Row-Crop tractor
Next model:John Deere 7200R
Series next:John Deere 7730
more John Deere 7630 specifications...






Transmission:

Transmission:PowrQuad PLUS
Gears:16 forward and reverse
Four push-button power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle.
Speeds:With group 47 rear tires. Reverse speeds are 4% faster than forward.

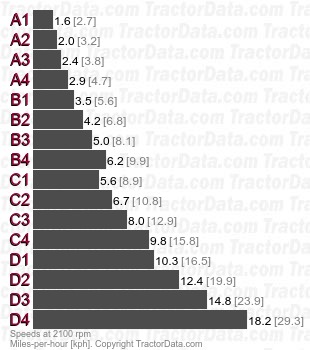

7630 PowrQuad PLUS  speeds


Transmission:

Transmission:AutoQuad PLUS
Gears:20 forward and reverse
Four push-button power shift gears (1-4) in five synchronized ranges (A-D) with left-hand power shuttle. Available in 40 kph and 50 kph versions.
Speeds:With group 47 rear tires. Reverse speeds are 4% faster than forward.

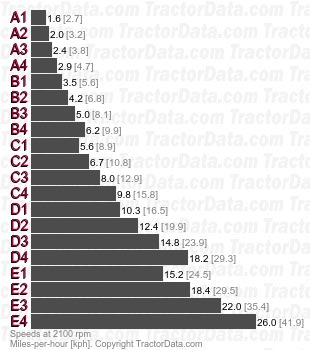

7630 AutoQuad PLUS  speeds


Transmission:

Transmission:Infinitely Variable Transmission (IVT)
Gears:infinite forward and reverse
