Tractors > TYM > T233

TYM T233

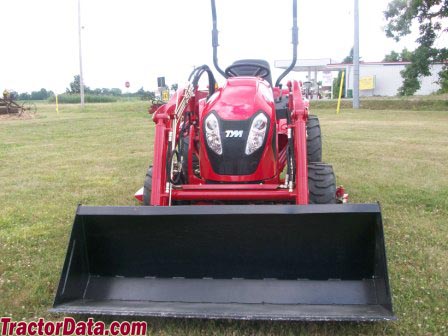

TYM T233 tractor photo
2006 - 2011
Compact Utility tractor
Series next:TYM T273






Production:

Manufacturer:TYM


TYM T233 Engine:

   Mitsubishi 1.1L 3-cyl diesel
full engine details ...


Capacity:

Fuel:6.6 gal [25.0 L]


3-Point Hitch:

Rear Type:I
Rear lift (at ends):1,653 lbs [749 kg]
Rear lift (at 24"/610mm):1,213 lbs [550 kg]


Power Take-off (PTO):

Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540 (1.375)
Mid PTO:independent
Mid RPM:2000


Dimensions & Tires:

Wheelbase:58.3 inches [148 cm]
Weight:1,654 lbs [750 kg]
Front tire:6-12
Rear tire:9.5-20
full dimensions and tires ...


TYM T233 attachments:

 front-end loader
all T233 attachments ...


T233 Serial Numbers:


- Serial numbers unknown -



TYM T233 Power:

Engine (gross):23 hp [17.2 kW]
PTO (claimed):19.5 hp [14.5 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS.


Hydraulics:

Type:gear pump
Valves:1
Pump flow:5.0 gpm [18.9 lpm]
Total flow:7.6 gpm [28.8 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:50


Battery:

Number:1
Volts:12
