Kubota BX2200 Engine


Kubota BX2200 tractor photo
2001 - 2003
BX Series
Sub-Compact Utility tractor
Series map:
BX1800
BX2200
18.0hp
22.0hp
Engine Detail
Kubota D905 E-TVCS
diesel
3-cylinder
liquid-cooled
Displacement54.8 ci
0.9 L
Bore/Stroke2.83x2.90 inches
72 x 74 mm
Power (gross)22 hp
16.4 kW
Fuel systemindirect injection
Rated RPM3600
Starter volts12

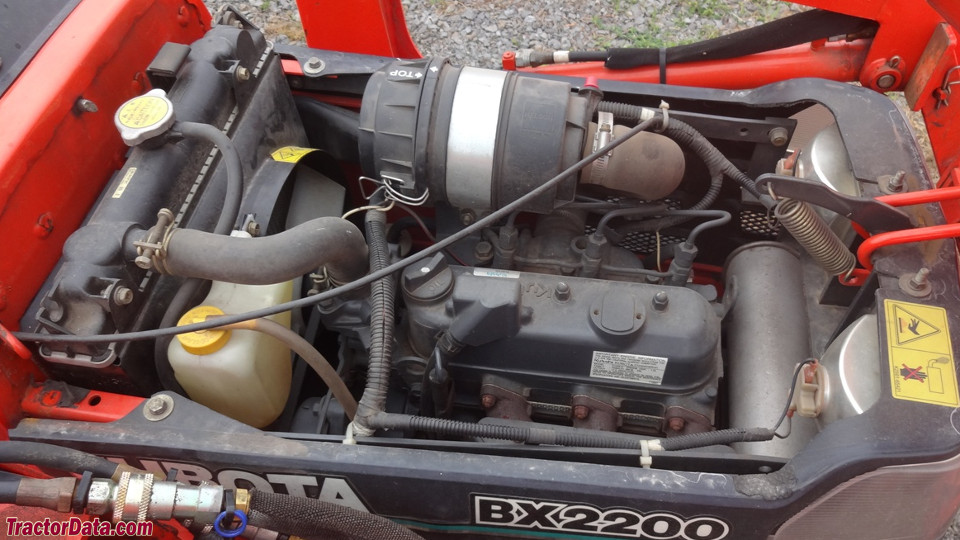

Kubota BX2200 Engine
Kubota BX2200 engine image
Image courtesy of White's Farm Supply
