Tractors > International Harvester > TD-9
      -Brand search:


     Farmall Tractors
    Farmall Tractors

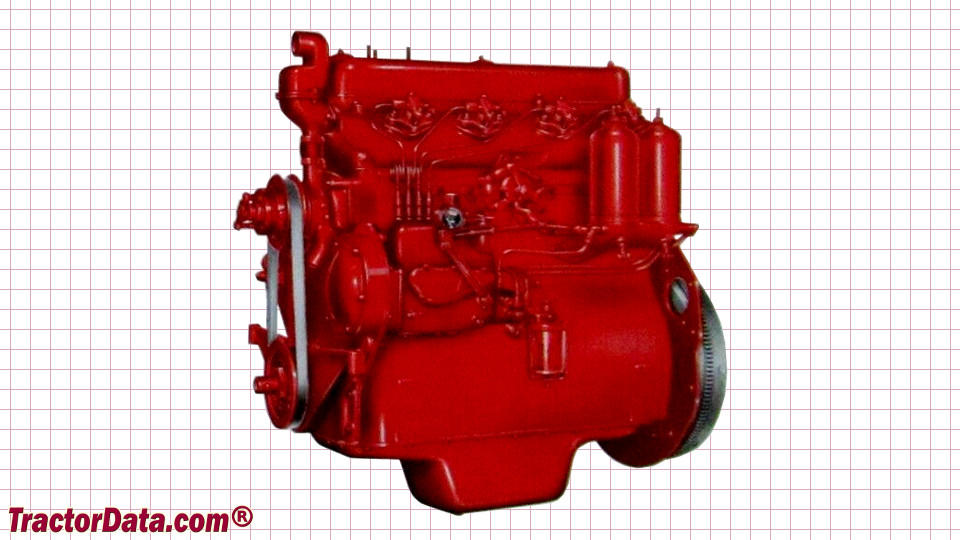

    International Harvester TD-9 - engine

    International Harvester TD-9 tractor photo
    1939 - 1959
    more International Harvester TD-9 specifications...






    Engine Detail:

     International Harvester
     diesel
     4-cylinder
     liquid-cooled vertical I-head
     334.5 ci [5.5 L]
    Bore/Stroke:4.40x5.50 inches [112 x 140 mm]
    Compression:15.7:1
    Rated RPM:1400
    Starter volts:12
    Coolant capacity:52 qts [49.2 L]


    Engine Detail:

    Larger engine, used in 1956
     International Harvester
     diesel
     4-cylinder
     liquid-cooled
     350 ci [5.7 L]
    Bore/Stroke:4.50x5.50 inches [114 x 140 mm]
    Compression:15.6:1
    Rated RPM:1550


    Engine Detail:

    92 series, final engine
     International Harvester D282
     diesel
     6-cylinder
     liquid-cooled
     282 ci [4.6 L]
    Bore/Stroke:3.6875x4.3906 inches [94 x 112 mm]
    Compression:18.1:1
    Rated RPM:1700
    Firing order:1-5-3-6-2-4
