Tractors > International Harvester > TD-14

International Harvester TD-14 - tests

International Harvester TD-14 tractor photo
1939 - 1958
Agricultural Crawler tractor
Previous model:McCormick-Deering TD-40
Next model:International Harvester TD-14A
more International Harvester TD-14 specifications...


Nebraska Tractor Test 343:

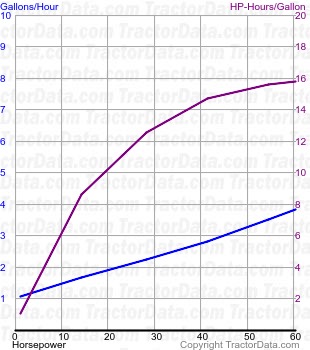

TD-14 fuel use from test 343
Test Date:May 6 - 31, 1940
Type:Diesel 6-speed crawler
Belt power (max):61.56 hp [45.9 kW]
Belt fuel use (max):3.9 gal/hour [14.8 l/hour]
Drawbar power (max):51.82 hp [38.6 kW]
Drawbar pull (max):13,426 lbs [6090 kg]
Max pull gear:1
Test report:PDF file
