| | 1959 - 1964 |
| Agricultural Crawler tractor |
|
Series map:
T-4
T-5
36.2hp
40.0hp
| Transmissions overview |
| 5-speed |
| 10-speed |
| Transmission |
| Transmission | Sliding spur gears
|
| Gears | 5 forward and 1 reverse
|
| Oil capacity | 13.2 qts
12.5 L
|

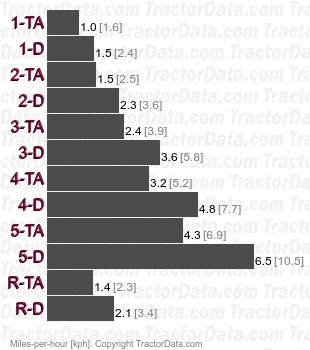

| Speeds |
|
| Transmission |
| Transmission | Torque-Amplifier
|
| Gears | 10 forward and 2 reverse
|
| Oil capacity | 15.6 qts
14.8 L
|
| | 30.6 qts (with hydraulics)
29.0 L
|

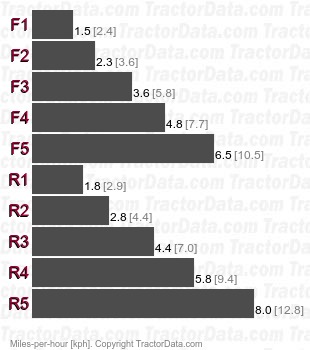

| Speeds |
|
| Transmission |
| Gears | 5 forward and reverse
|
| Oil capacity | 15.6 qts
14.8 L
|
| | 30.6 qts (with hydraulics)
29.0 L
|
