Tractors > John Deere > 6405

John Deere 6405 - transmission

John Deere 6405 tractor photo
1998 - 2002   Advantage Series
Utility tractor
Series next:John Deere 6605
more John Deere 6405 specifications...



Transmission:John Deere SyncroVantage
Type:fully synchronized
Gears:12 forward and 4 reverse
Oil capacity:54.8 qts [51.9 L]

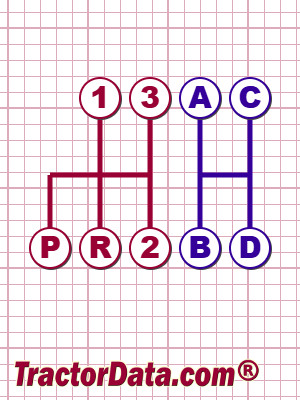

Three gears (1-3) plus reverse (R) with four ranges (A-D).
Speeds:With 18.4-34 rear tires.

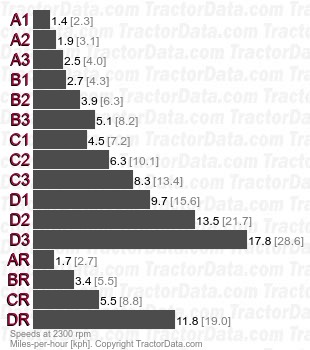

6405 SyncroVantage fully synchronized speeds


Transmission:John Deere SyncroVantage Power Reverser
Type:power shuttle
Gears:16 forward and reverse
Oil capacity:54.8 qts [51.9 L]

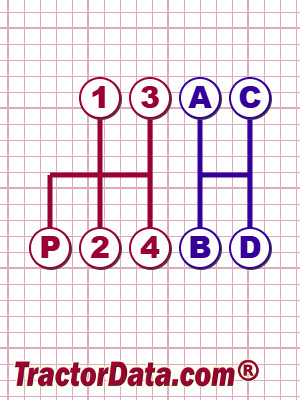

Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Power shuttle allows direction changes without using the clutch.
Speeds:With 18.4-34 rear tires.

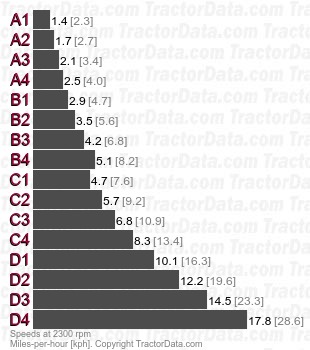

6405 SyncroVantage Power Reverser power shuttle speeds
