AGCO ST25 Transmission


AGCO ST25 tractor photo
2001 - 2004
ST Series
Compact Utility tractor
Iseki built
Series map:
ST25
ST30x
24.3hp
28.4hp
Transmission options
6-speed gear
hydrostatic
Transmission
Typegear
Gears6 forward and 2 reverse
Clutch184mm mechanical dry disc
Oil capacity14.8 qts
14.0 L
Three gears (1-3), plus reverse (R), in two ranges. Tractor must be stopped, and clutch used, to shift gears or range.
Speeds
With 9.5-16 rear tires.

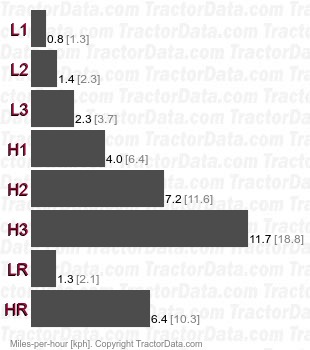

ST25  gear speeds
Transmission
ManufacturerKayaba
Typehydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity14.8 qts
14.0 L
Speeds
With 9.5-16 rear tires.

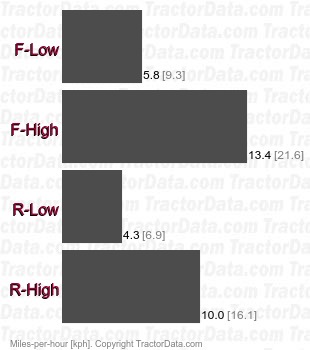

ST25  hydrostatic speeds
