Tractors > McCormick-Deering > W-30

McCormick-Deering W-30 Tests



McCormick-Deering W-30 tractor photo
1932 - 1940
Standard-tread tractor
Series map:
W-30
W-40
27.8hp*
50.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 210

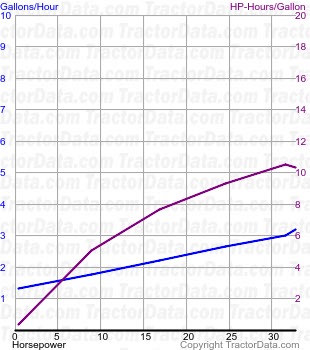

W-30 fuel use from test 210
Nebraska Tractor Test 210
Kerosene 3-speed 2WD
July 26 - August 10, 1932
Link: Nebraska Tractor Test 210 file
Belt power (max)33.26 hp
24.8 kW
Belt fuel use (max)3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power24.29 hp
18.1 kW
Gear 1 used for power test.
Max pull3,118 lbs
1414 kg
Gear 1 used for pull test.
