John Deere 6210 Engine


John Deere 6210 tractor photo
1999 - 2002
6000 TEN Series
Utility tractor
6200
Series:611062106310
6220

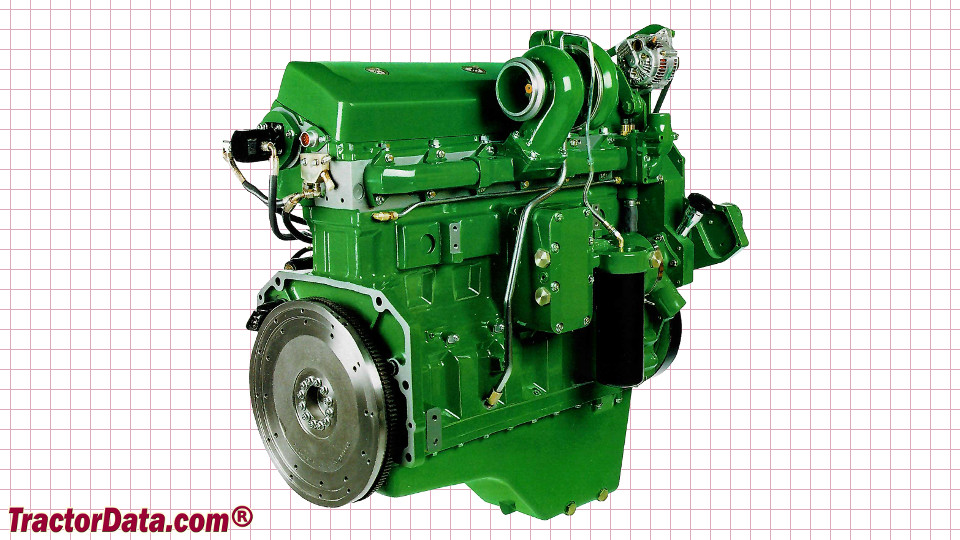

Engine Detail
John Deere 4045TL054
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:276 ci
4.5 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Power (gross):90 hp
67.1 kW
Compression:17.8:1
Rated RPM:2300
Operating RPM:1500-2300
Torque:274 lb-ft
371.5 Nm
Torque RPM:1900
Firing order:1-3-4-2
Starter volts:12
Oil capacity:12.7 qts
12.0 L
ROPS Coolant capacity:11.6 qts
11.0 L
Cab Coolant capacity:14.3 qts
13.5 L
Intake valve clearance:0.014 inches
0.356 mm
Exhaust valve clearance:0.018 inches
0.457 mm
