John Deere 9300 Transmission


John Deere 9300 tractor photo
1997 - 2001
9000 Series
Four-wheel Drive (4WD) tractor
Series map:
9200
9300
9400
310.0hp
360.0hp
425.0hp
Transmissions overview
12-speed partially synchronized
24-speed partial power shift
12-speed full power shift
Transmission
TransmissionJohn Deere Syncro
Typepartially synchronized
Gears12 forward and 3 reverse
Oil capacity147.2 qts (100mm axle)
139.3 L
 151.6 qts (110mm axle)
143.5 L
 151.2 qts (PTO 100mm axle)
143.1 L
 155.6 qts (PTO 110mm axle)
147.3 L
 140 qts (SN030001+)
132.5 L
Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range.
Speeds
With 620/70R42 tires.

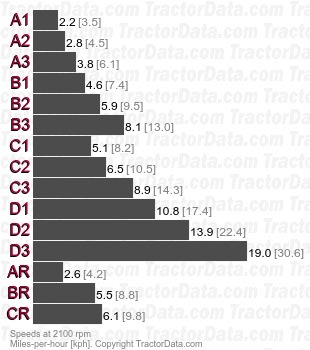

9300 Syncro partially synchronized speeds
Transmission
TransmissionJohn Deere PowrSync
Typepartial power shift
Gears24 forward and 6 reverse
Oil capacity147.2 qts (100mm axle)
139.3 L
 151.6 qts (110mm axle)
143.5 L
 151.2 qts (PTO 100mm axle)
143.1 L
 155.6 qts (PTO 110mm axle)
147.3 L
 140 qts (SN030001+)
132.5 L
Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever.
Speeds
With 620/70R42 tires.
9300 PowrSync partial power shift speeds
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears12 forward and 2 reverse
Oil capacity64 qts (early)
60.6 L
 56 qts (SN030001+)
53.0 L
 60 qts (no PTO early)
56.8 L
 54 qts (no PTO late)
51.1 L
 120 qts (axles early)
113.6 L
 108 qts (axles SN030001+)
102.2 L
Speeds
With 620/70R42 tires.

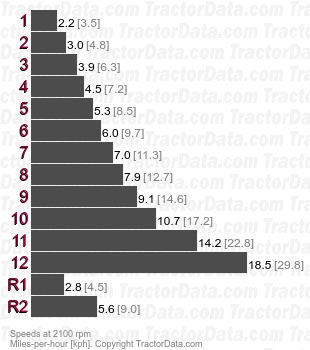

9300 PowerShift full power shift speeds
