Tractors > John Deere > 9200

John Deere 9200 - tests

John Deere 9200 tractor photo
1996 - 2001   9000 Series
Model years
Four-wheel Drive (4WD) tractor
Series next:John Deere 9300
Series back:John Deere 9100
more John Deere 9200 specifications...






OCED Tractor Test 1731:

Nebraska summary:231

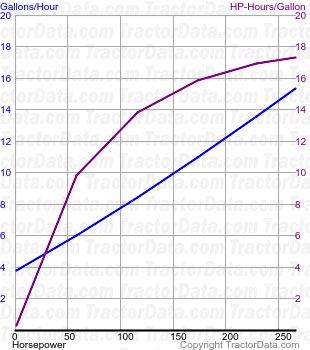

9200 fuel use from test 231
Test Date:April 24 - May 15, 1997
Type:Diesel 24-speed 4WD
PTO power (max):296.92 hp [221.4 kW]
PTO fuel use (max):16.2 gal/hour [61.3 l/hour]
PTO power (rated engine speed):265.72 hp [198.1 kW]
PTO fuel use (engine speed):15.3 gal/hour [57.9 l/hour]
PTO power (rated PTO speed):296.92 hp [221.4 kW]
PTO fuel use (PTO speed):16.2 gal/hour [61.3 l/hour]
Drawbar power (max):246.46 hp [183.8 kW]
Drawbar fuel use (max):15.5 gal/hour [58.7 l/hour]
Drawbar pull (max):34057 lbs [15448 kg]
Max pull gear:A2-Low
Test report:PDF file
