Tractors > John Deere > 9100

John Deere 9100 - tests

John Deere 9100 tractor photo
1997 - 2001   9000 Series
Four-wheel Drive (4WD) tractor
Next model:John Deere 9120
Series next:John Deere 9200
more John Deere 9100 specifications...






OCED Tractor Test 1730:

Nebraska summary:230

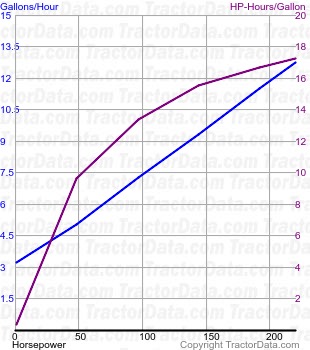

9100 fuel use from test 230
Test Date:April 21 - May 1, 1997
Type:Diesel 24-speed 4WD
PTO power (max):249.38 hp [186.0 kW]
PTO fuel use (max):13.2 gal/hour [50.0 l/hour]
PTO power (rated engine speed):219.61 hp [163.8 kW]
PTO fuel use (engine speed):12.7 gal/hour [48.1 l/hour]
PTO power (rated PTO speed):248.23 hp [185.1 kW]
PTO fuel use (PTO speed):13.3 gal/hour [50.3 l/hour]
Drawbar power (max):199.67 hp [148.9 kW]
Drawbar fuel use (max):12.5 gal/hour [47.3 l/hour]
Drawbar pull (max):33933 lbs [15392 kg]
Max pull gear:A1-Low
Test report:PDF file
