Tractors > John Deere > 7610

John Deere 7610 - tests

John Deere 7610 tractor photo
1997 - 2002   7010 Series
Row-Crop tractor
Previous model:John Deere 7600
Series next:John Deere 7710
more John Deere 7610 specifications...






OCED Tractor Test 1724:

Nebraska summary:224

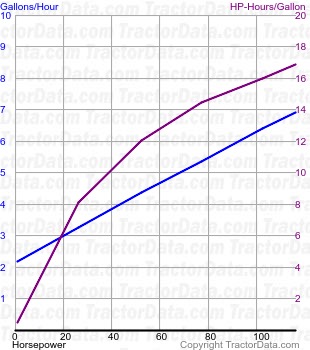

7610 fuel use from test 224
Test Date:May 27 - June 18, 1997
Type:Diesel PowrQuad 16-speed 4WD
PTO power (max):118.07 hp [88.0 kW]
PTO fuel use (max):6.8 gal/hour [25.7 l/hour]
PTO power (rated engine speed):115.94 hp [86.5 kW]
PTO fuel use (engine speed):6.9 gal/hour [26.1 l/hour]
Drawbar power (max):103.19 hp [76.9 kW]
Drawbar fuel use (max):6.9 gal/hour [26.1 l/hour]
Drawbar pull (max):13,610 lbs [6173 kg]
Max pull gear:A4
Test report:PDF file


OCED Tractor Test 1725:

Nebraska summary:225

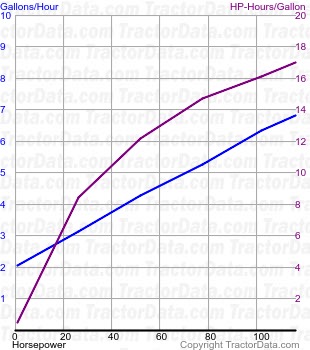

7610 fuel use from test 225
Test Date:May 22 - June 18, 1997
Type:Diesel PowerShift 4WD
PTO power (max):117.27 hp [87.4 kW]
PTO fuel use (max):6.5 gal/hour [24.6 l/hour]
PTO power (rated engine speed):115.96 hp [86.5 kW]
PTO fuel use (engine speed):6.8 gal/hour [25.7 l/hour]
Drawbar power (max):96.26 hp [71.8 kW]
Drawbar fuel use (max):6.7 gal/hour [25.4 l/hour]
Drawbar pull (max):14,475 lbs [6565 kg]
Max pull gear:5
Test report:PDF file


OCED Tractor Test 1787:

Nebraska summary:340
Test Date:October 26 - November 7, 2000
Type:Diesel PowrQuad 20-speed 4WD
PTO power (max):126.83 hp [94.6 kW]
PTO fuel use (max):7.0 gal/hour [26.5 l/hour]
PTO power (rated engine speed):120.63 hp [90.0 kW]
PTO fuel use (engine speed):7.1 gal/hour [26.9 l/hour]
Drawbar power (max):108.47 hp [80.9 kW]
Drawbar fuel use (max):7.1 gal/hour [26.9 l/hour]
Drawbar pull (max):17,738 lbs [8045 kg]
Max pull gear:A3
Test report:PDF file
