Tractors > John Deere > 7610
      -Brand search:


    John Deere 7610 - engine

    John Deere 7610 tractor photo
    1997 - 2002   7010 Series
    Row-Crop tractor
    Previous model:John Deere 7600
    Larger:John Deere 7710
    more John Deere 7610 specifications...






    Engine Detail:

     John Deere PowerTech
     turbocharged aftercooled diesel
     6-cylinder
     liquid-cooled inline
     414 ci [6.8 L]
    Bore/Stroke:4.19x5.00 inches [106 x 127 mm]
    Power:140 hp [104.4 kW]
    Fuel system:mechanical direct injection
    Air cleaner:dual dry element
    Compression:17:1
    Rated RPMs:2100
    Idle RPMs:800-2325
    Torque:420 lb-ft [569.5 Nm]
    Firing order:1-5-3-6-2-4
    Starter volts:12
    Oil capacity:20 qts [18.9 L]
    Coolant capacity:25 qts [23.7 L]

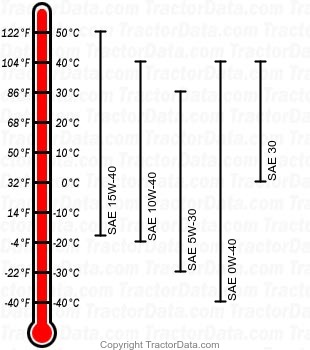

    7610 diesel engine oil chart
