John Deere 7710 - engine

John Deere 7710 tractor photo
1997 - 2003   7010 Series
Row-Crop tractor
Previous model:John Deere 7700
Next model:John Deere 7720
John Deere 7720
Series next:John Deere 7810
Series back:John Deere 7610
more John Deere 7710 specifications...






Engine Detail:

 John Deere PowerTech
 turbocharged aftercooled diesel
 6-cylinder
 liquid-cooled
 496 ci [8.1 L]
Bore/Stroke:4.56x5.06 inches [116 x 129 mm]
Power:155 hp [115.6 kW]
Fuel system:direct injection
Air cleaner:dual dry element
Compression:16.5:1
Rated RPM:2100
Torque:522 lb-ft [707.8 Nm]
Starter volts:12

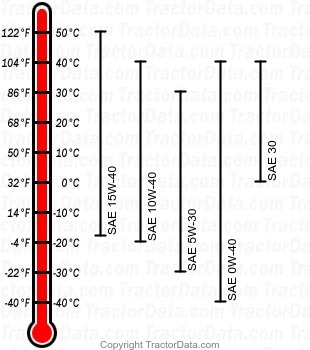

Oil capacity:25 qts [23.7 L]
Coolant capacity:27.5 qts [26.0 L]
