Tractors > Deutz-Allis > 7085
      -Brand search:


    Deutz-Allis 7085

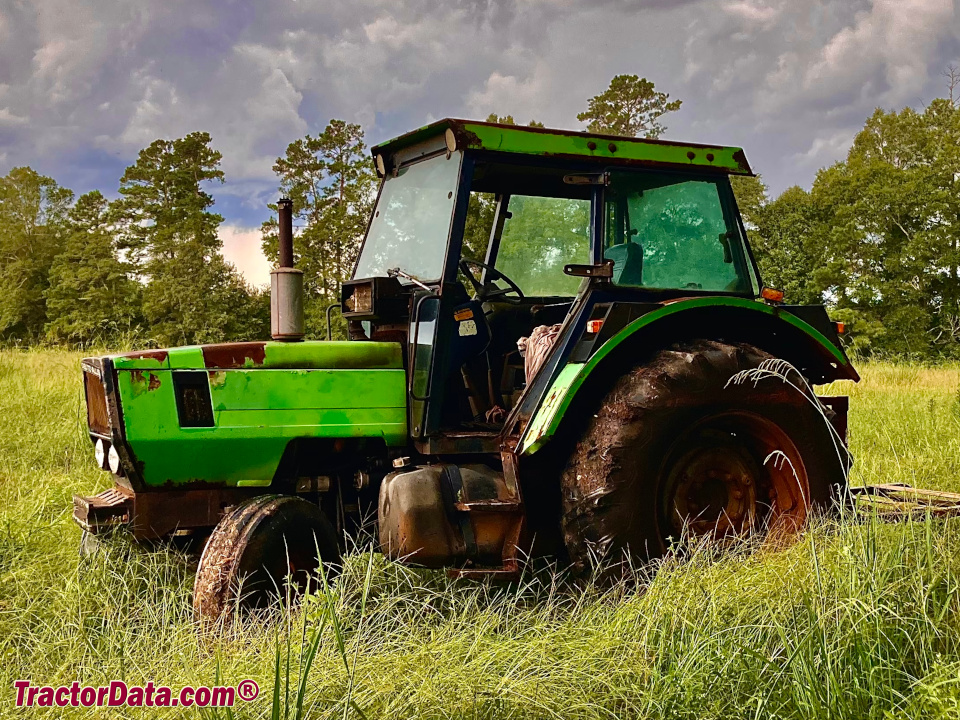

    Deutz-Allis 7085 tractor photo
    1986 - 1990
    Larger:Deutz-Allis 7110





    The Deutz-Allis 7085 is similar to the Deutz-Fahr DX 4.70.


    Production:

    Manufacturer:Deutz-Allis


    Deutz-Allis 7085 Engine:

       Deutz 4.1L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:31 gal [117.3 L]
    Hydraulic system:9.8 gal [37.1 L]


    3-Point Hitch:

    Rear Type:II
    Rear lift:8377 lbs [3799 kg]
    Front Hitch:II (optional)
    Front lift:3,968 lbs [1799 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPM:540/1000
    Front PTO:independent (optional)
    Front RPM:1000


    Dimensions & Tires:

    Wheelbase:92 inches [233 cm] (2WD)
     94.5 inches [240 cm] (4WD)
    Weight:8466 to 13660 pounds
    Front tire:10.00-16
    Rear tire:18.4-34
    full dimensions and tires ...


    7085 Serial Numbers:

    1986: 743 43030 (2WD ROPS)
    1987: 743 43242 (2WD ROPS)
    1988: 743 43459 (2WD ROPS)
    1989: 743 46199 (2WD ROPS)
    1990: 743 46464 (2WD ROPS)
    1986: 743 53065 (4WD ROPS)
    1987: 743 53826 (4WD ROPS)
    1988: 743 54784 (4WD ROPS)
    1989: 743 56577 (4WD ROPS)
    1990: 743 47417 (4WD ROPS)
    1986: 743 43006 (2WD Cab)
    1987: 743 43225 (2WD Cab)
    1988: --------- (2WD Cab)
    1989: --------- (2WD Cab)
    1990: 743 46464 (2WD Cab)
    1986: 743 53031 (4WD Cab)
    1987: 743 53815 (4WD Cab)

    how to read serial numbers...



    Deutz-Allis 7085 Power:

    PTO (claimed):85 hp [63.4 kW]
    Drawbar (tested):73.23 hp [54.6 kW]
    PTO (tested):85.18 hp [63.5 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Differential lock:foot-operated rear
     OPTICTRAC automatic front
    Steering:hydrostatic power
    Brakes:differential hydraulic dry disc
    Cab:Detuz-Allis MasterCab standard with heat and air-conditioning. Agrotronic instrumentation standard, optional Agrotronic II.


    Hydraulics:

    Type:open center
    Capacity:9.8 gal [37.1 L]
    Pressure:2538 psi [175.0 bar]
    Valves:1 to 3
    Pump flow:12.4 gpm [46.9 lpm]
    Total flow:16.9 gpm [64.0 lpm]
    Steering flow:7.1 gpm [26.9 lpm]


    Electrical:

    Charging system:alternator
    Charging amps:90
    Charging volts:14


    Battery:

    Volts:12
