New Holland TM135 Tests


New Holland TM135 tractor photo
2000 - 2002
TM Series
Row-Crop tractor
Series:TM125TM135TM150
TM140
OCED Tractor Test 1919

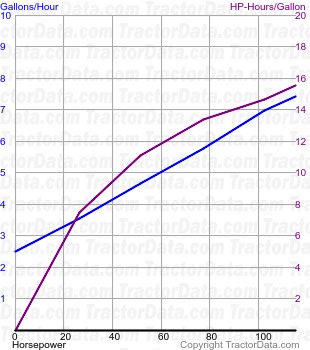

TM135 fuel use from test 344
OCED Tractor Test 1919
Diesel 18-speed 4WD
March 2000 - June 2000,
Link: OCED Tractor Test 1919 file
PTO performance
Max power:118.7 hp
88.5 kW
Fuel use:7.2 gal/hour
27.3 l/hour
Power at rated engine speed:114.9 hp
85.7 kW
Fuel use:7.4 gal/hour
28.0 l/hour
Power at rated PTO speed:118.0 hp
88.0 kW
Fuel use:7.3 gal/hour
27.6 l/hour
Drawbar performance
Max power:98.2 hp
73.2 kW
Fuel use:7.3 gal/hour
27.6 l/hour
Gear 2B used for power test.
Max pull:13375 lbs
6066 kg
Gear 1A used for pull test.
