New Holland TM125 Transmission


New Holland TM125 tractor photo
2000 - 2002
TM Series
Row-Crop tractor
8260
Series:TM115TM125TM135
TM130
Transmissions overview
18-speed power shift
24-speed two-speed power shift
Transmission
Transmission:Range Command
Type:power shift
Gears:18 forward and 6 reverse
Clutch:electro-hydraulic wet disc
Six power shift gears (1-6) in three ranges (A, B, C) with power shuttle. Push-button control for gear and range shifts. Left-hand shuttle lever.
Speeds
With 520/70R-38 rear tires.
TM125 Range Command power shift speeds
Transmission
Transmission:Dual Command
Type:two-speed power shift
Gears:24 forward and 12 reverse
Four gears (1-4) in three ranges (A, B, C) with two-speed push-button power shift.
Speeds
With 520/70R-38 rear tires.

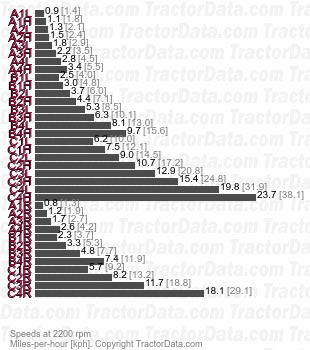

TM125 Dual Command two-speed power shift speeds
