New Holland TM115 Transmission


New Holland TM115 tractor photo
2000 - 2002
TM Series
Row-Crop tractor
8160
Series:TM115TM125
TM120
Transmissions overview
18-speed power shift
24-speed two-speed power shift
Transmission
Transmission:Range Command
Type:power shift
Gears:18 forward and 6 reverse
Clutch:electro-hydraulic wet disc
Six power shift gears (1-6) in three ranges (A, B, C) with power shuttle. Push-button control for gear and range shifts. Left-hand shuttle lever.
Speeds
With 520/70R-38 rear tires.

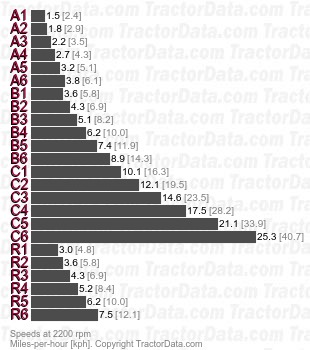

TM115 Range Command power shift speeds
Transmission
Transmission:Dual Command
Type:two-speed power shift
Gears:24 forward and 12 reverse
Four gears (1-4) in three ranges (A, B, C) with two-speed push-button power shift. Left-hand power shuttle lever. Synchronized shifting between gears and between ranges B and C. Tractor must be stopped to shift in or out of range A.
Speeds
With 520/70R-38 rear tires.

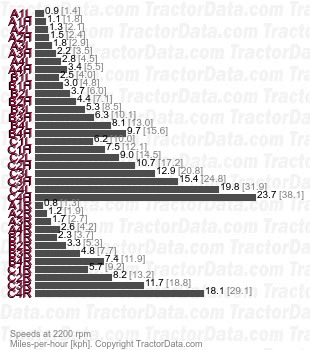

TM115 Dual Command two-speed power shift speeds
