Tractors > New Holland > TG230

New Holland TG230 - tests

New Holland TG230 tractor photo
2002 - 2006   TG Series
Row-Crop tractor
Next model:New Holland TG245
Series next:New Holland TG255
Series back:New Holland TG210
more New Holland TG230 specifications...






OCED Tractor Test 1830:

Nebraska summary:418

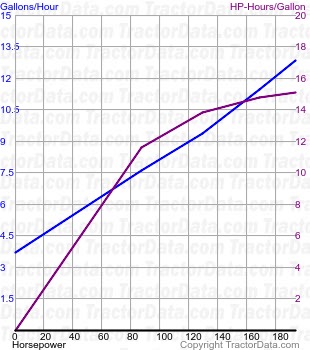

TG230 fuel use from test 418
Test Date:September 24 - October 27, 2003
Type:Diesel 18-speed 4WD
PTO power (max):216.31 hp [161.3 kW]
PTO fuel use (max):12.2 gal/hour [46.2 l/hour]
PTO power (rated engine speed):193.40 hp [144.2 kW]
PTO fuel use (engine speed):12.8 gal/hour [48.4 l/hour]
PTO power (rated PTO speed):213.61 hp [159.3 kW]
PTO fuel use (PTO speed):12.8 gal/hour [48.4 l/hour]
Drawbar power (max):163.29 hp [121.8 kW]
Drawbar fuel use (max):12.9 gal/hour [48.8 l/hour]
Drawbar pull (max):19826 lbs [8993 kg]
Max pull gear:4
Test report:PDF file
