| | 2003 - 2006 |
| TS-A Series | | Utility tractor |
|
| Transmissions overview |
| 12-speed |
| 24-speed |
| 16-speed power shift |
| Transmission |
| Transmission: | Synchro-Command
|
| Gears: | 12 forward and reverse
|
| Oil capacity: | 60 qts
56.8 L
|
| Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range. |

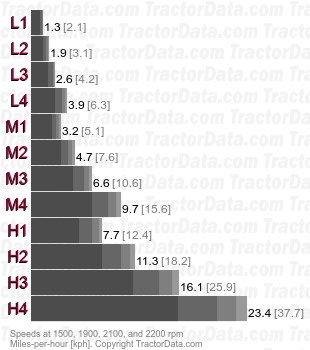

| Speeds |
| 16.9-38 rear tires. |
|
| Transmission |
| Transmission: | Dual-Command
|
| Gears: | 24 forward and reverse
|
| Oil capacity: | 60 qts
56.8 L
|
| Same as Synchro Command, with an additional underspeed powershift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse. |

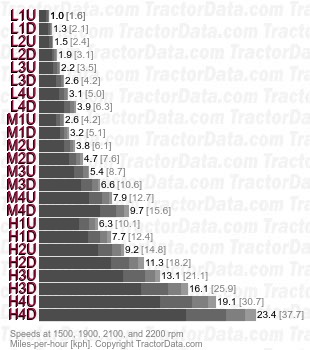

| Speeds |
| 16.9-38 rear tires. |
|
| Transmission |
| Transmission: | Electro-Shift
|
| Type: | power shift
|
| Gears: | 16 forward and reverse
|
| Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D. |
| Transmission |
| Transmission: | Autoshift
|
| Type: | power shift
|
| Gears: | 16 forward and reverse
|
| The Autoshift tranmssion adds automatic computer-controlled shifting to the 16-speed transmission. |
