New Holland TS90 Engine



New Holland TS90 tractor photo
1999 - 2003
TS Series
Series map:
TS90
TS100
90.0hp
100.0hp
Engine Detail
diesel
4-cylinder
liquid-cooled
Displacement304 ci
5.0 L
Bore/Stroke4.40x5.00 inches
112 x 127 mm
Power90 hp
67.1 kW
Compression17.5:1
Rated RPM2170
Firing order1-3-4-2
Starter volts12
Coolant capacity14.8 qts
14.0 L
 16.8 qts (cab)
15.9 L
Intake valve clearance0.014-0.018 inches (cold)
0.356 mm
Exhaust valve clearance0.017-0.021 inches (cold)
0.432 mm
Engine Oil

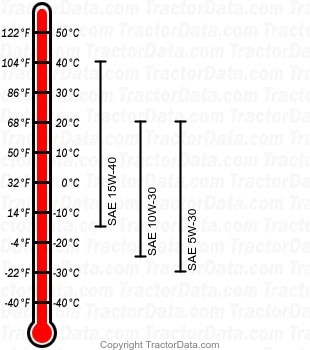

TS90 diesel engine oil chart
Oil capacity12 qts
11.4 L
