New Holland TN75 Transmission


New Holland TN75 tractor photo
1999 - 2003
TN Series
Utility tractor
Series:TN70TN75
TN75A
Transmissions overview
8-speed gear
8-speed partially synchronized
16-speed partially synchronized
32-speed two-speed power shift
Transmission
Type:gear
Gears:8 forward and reverse
Clutch:280mm dry disc
Four gears (1-4) in two ranges (A/B) with mechanical shuttle. Non-synchronized transmission, available only on the base TN75 model.
Speeds
With 14.9-28 rear tires and 30 KPH transmission.

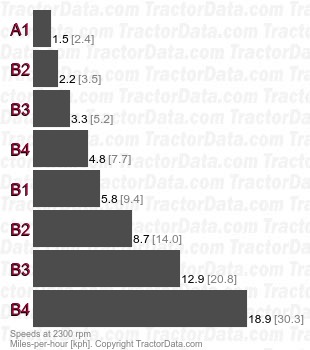

TN75  gear speeds
Transmission
Transmission:Synchro Command
Type:partially synchronized
Gears:8 forward and reverse
Clutch:dry disc (mechanical shuttle)
 wet disc (power shuttle)
Four synchronized gears (1-4) in two ranges (A/B). Available as either mechanical shuttle or power shuttle.
Speeds
With 14.9-28 rear tires and 30 KPH transmission.
TN75 Synchro Command partially synchronized speeds
Transmission
Transmission:Synchro Command Plus
Type:partially synchronized
Gears:16 forward and reverse
Clutch:dry disc (mechanical shuttle)
 wet disc (power shuttle)
Four synchronized gears (1-4) in four ranges (A-D). Available as either mechanical shuttle or power shuttle. Standard transmission on the TN55D and TN55S.
Speeds
With 14.9-28 rear tires and 30 KPH transmission.
TN75 Synchro Command Plus partially synchronized speeds
Transmission
Transmission:Dual Command
Type:two-speed power shift
Gears:32 forward and 16 reverse
Clutch:wet discs
Four synchronized gears (1-4) in four ranges (A-D) with two-speed push-button power shift. Left-hand power shuttle.
Speeds
With 14.9-28 rear tires and 30 KPH transmission.

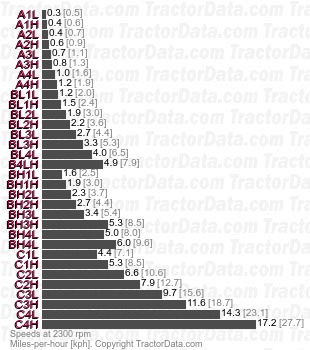

TN75 Dual Command two-speed power shift speeds
