Allis Chalmers HD11 Engine


Allis Chalmers HD11 tractor photo
1955 - 1966
Agricultural Crawler tractor
Series map:
HD11
110.0hp
Engine Detail
Allis-Chalmers HD-516
diesel
6-cylinder
liquid-cooled vertical I-head
Displacement516 ci
8.5 L
Bore/Stroke4.4375x5.5625 inches
113 x 141 mm
Power (gross)110 hp
82.0 kW
Air cleaneroil bath
Compression15.0:1
Rated RPM1800
Starter volts24
Oil capacity17 qts
16.1 L
Coolant capacity44 qts
41.6 L

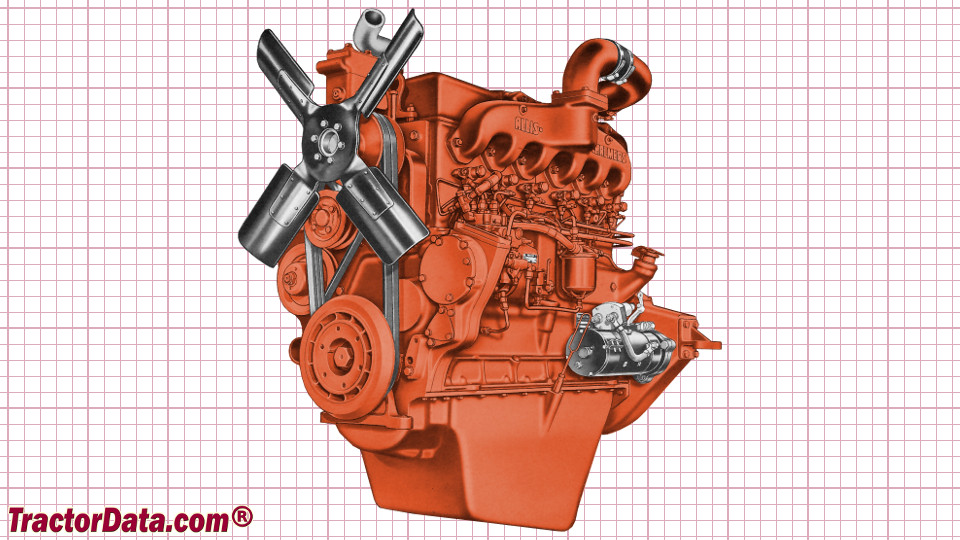

Allis Chalmers HD11 Engine
Allis Chalmers HD11 engine image
