Tractors > Allis Chalmers > HD5

Allis Chalmers HD5 Tests



Allis Chalmers HD5 tractor photo
1946 - 1955
Agricultural Crawler tractor
Nebraska Tractor Test 396

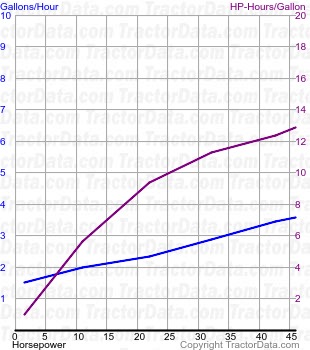

HD5 fuel use from test 396
Nebraska Tractor Test 396
Diesel 5-speed crawler
July 1 - 16, 1948
Link: Nebraska Tractor Test 396 file
Belt power (max):47.85 hp
35.7 kW
Belt fuel use (max):3.8 gal/hour
14.4 l/hour
Drawbar performance
Max power:38.24 hp
28.5 kW
Gear 2 used for power test.
Max pull:10029 lbs
4549 kg
Gear 1 used for pull test.
Page information
Last update:April 11, 2022
