Century C29 Transmission


No photo available
2005 - 2006
Compact Utility tractor
Kukje built
Series:C29C35
Transmission
Type:partially synchronized
Gears:12 forward and reverse
Oil capacity:37 qts
35.0 L
Oil type:
10oF [-12oC] : JDM J20C
70o↔-40oF [21o↔-40oC]   : JDM J20D

Four gears in three ranges with left-hand shuttle. Gear shift is synchronized with clutch. Tractor must be stopped to shift range and shuttle.
Speeds
With 12.4-24 rear tires.

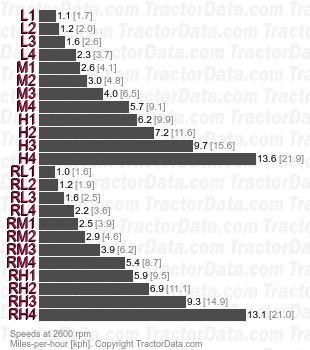

C29  partially synchronized speeds
