Tractors > Caterpillar > D4

Caterpillar D4 - tests

Caterpillar D4 tractor photo
1938 - 1957
Agricultural Crawler tractor
more Caterpillar D4 specifications...






Nebraska Tractor Test 417:

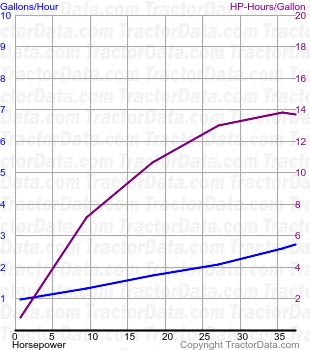

D4 fuel use from test 417
Test Date:July 11 - 26, 1949
Type:312 diesel 5-speed crawler
Belt power (max):51.81 hp [38.6 kW]
Belt fuel use (max):3.7 gal/hour [14.0 l/hour]
Drawbar power (max):41.65 hp [31.1 kW]
Drawbar pull (max):9,555 lbs [4334 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 554:

D4 fuel use from test 554
Test Date:July 25 - August 10, 1955
Type:350 diesel 5-speed crawler
Belt power (max):58.88 hp [43.9 kW]
Belt fuel use (max):4.4 gal/hour [16.7 l/hour]
Drawbar power (max):48.72 hp [36.3 kW]
Drawbar pull (max):9,976 lbs [4525 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 746:

D4 fuel use from test 746
Test Date:1960
Type:350 diesel 5-speed crawler
Belt power (max):56.54 hp [42.2 kW]
Belt fuel use (max):4.3 gal/hour [16.3 l/hour]
Drawbar power (max):50.18 hp [37.4 kW]
Drawbar pull (max):11,694 lbs [5304 kg]
Max pull gear:1
Test report:PDF file
