Lamborghini Champion 180 Transmission


Lamborghini Champion 180 tractor photo
2000 - 2004
Champion Series
Row-Crop tractor
Champion 135
Series:Champion 180
Transmissions overview
18-speed 9-speed power shift
27-speed creeper
Transmission
Type:9-speed power shift
Gears:18 forward and reverse
Clutch:hydraulic wet disc
Nine power shift gears in two ranges with power shuttle.
Speeds
With 580/70R42 rear tires. Rear speeds are aboutg 9% faster than forward.

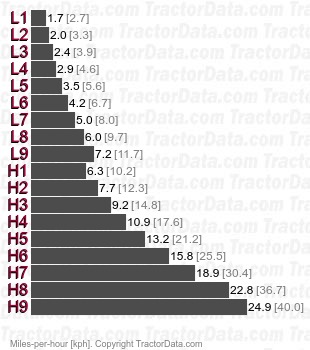

Champion 180  9-speed power shift speeds
Transmission
Type:creeper
Gears:27 forward and reverse
Speeds

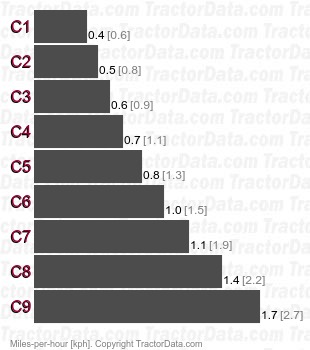

Champion 180  creeper speeds
