| | 2000 - 2004 |
| Champion Series | | Row-Crop tractor |
|
| Transmissions overview |
| 18-speed 9-speed power shift |
| 27-speed creeper |
| Transmission |

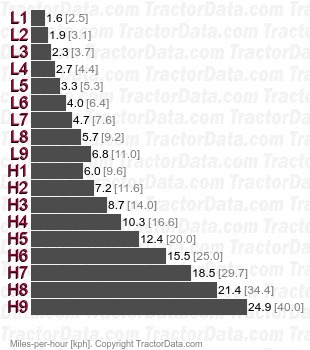

| Type: | 9-speed power shift
|
| Gears: | 18 forward and reverse
|
| Clutch: | hydraulic wet disc
|
| Nine power shift gears in two ranges with power shuttle. |
| Speeds |
| With 650/65R38 rear tires. Rear speeds are aboutg 9% faster than forward. |
|
| Transmission |

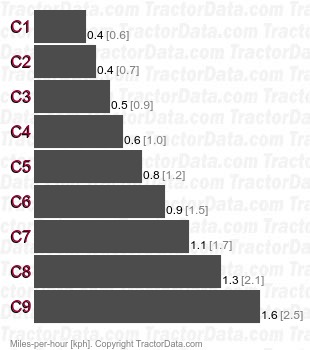

| Type: | creeper
|
| Gears: | 27 forward and reverse
|
| Speeds |
|
