Lamborghini 115 Formula Transmission


Lamborghini 115 Formula tractor photo
1991 - 2000
Formula Series
Row-Crop tractor
Series:105 Formula115 Formula135 Formula
Transmissions overview
54-speed three-speed power shift
72-speed creeper
Transmission
Transmission:Multispeed
Type:three-speed power shift
Gears:54 forward and reverse
Clutch:electro-hydraulic wet disc
Six gears (1-6) in three ranges (L/M/H) with three-speed power shift.
Speeds
With 18.4R28 rear tires. Over- and under-drive power shift speeds are about 20% higher and lower, respectively.
115 Formula Multispeed three-speed power shift speeds
Transmission
Type:creeper
Gears:72 forward and reverse
Creeper option adds a fourth ranges to the standard transmission.
Speeds
With 18.4R28 rear tires. Over- and under-drive power shift speeds are about 20% higher and lower, respectively.

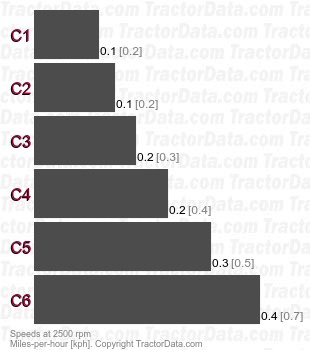

115 Formula  creeper speeds
