| Transmissions overview |
| 12-speed synchronized |
| 24-speed |
| 20-speed creeper |
| Transmission |
| Type: | synchronized
|
| Gears: | 12 forward and 3 reverse
|
| Four gears, plus reverse, in three ranges. |

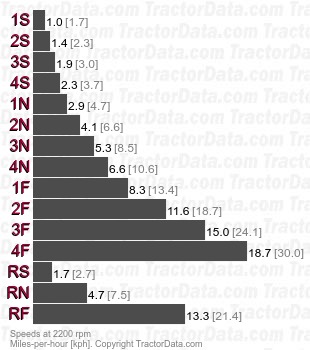

| Speeds |
|
| Transmission |
| Gears: | 24 forward and 6 reverse
|
| Optional mini-reduction provides a shift between the standard gears and a 15% slower gear. |
| Transmission |
| Type: | creeper
|
| Gears: | 20 forward and 5 reverse
|

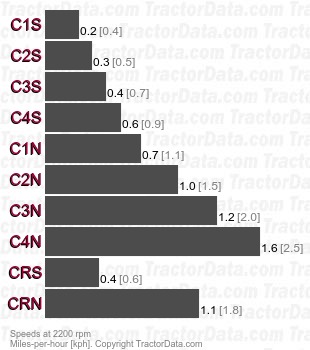

| Speeds |
|
