Tractors > Volvo > T400

Volvo T400

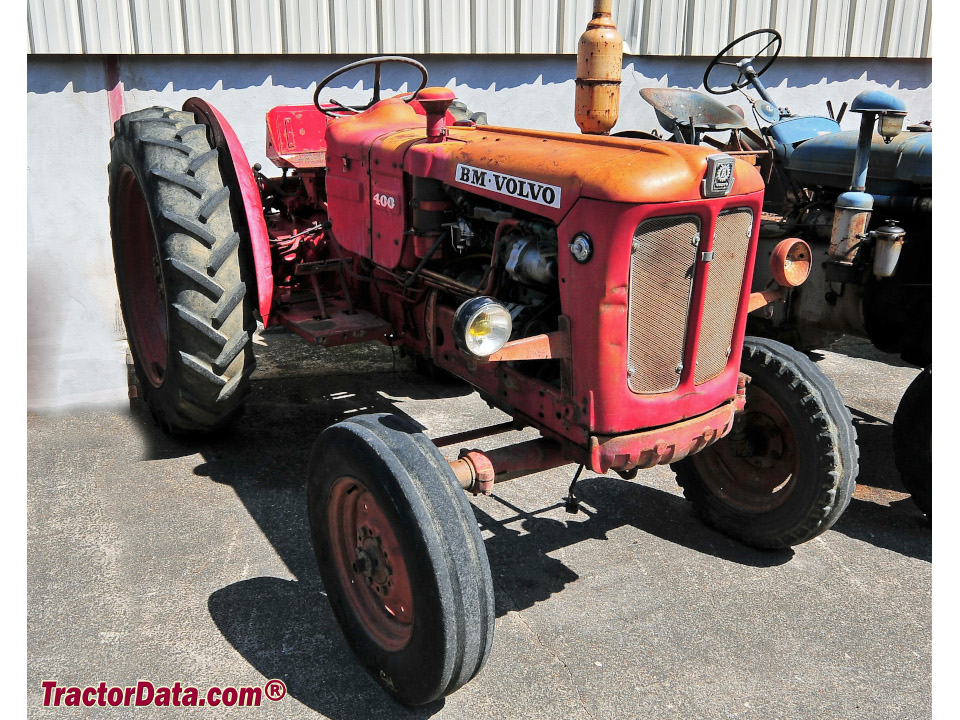

Volvo T400 tractor photo
1964 - 1969






Production:

Manufacturer:Volvo
Total built:22589


Volvo T400 Engine:

   Perkins 2.5L 3-cyl diesel
full engine details ...


Capacity:

Fuel:11.9 gal [45.0 L]
Hydraulic system:6.1 gal [23.1 L]


3-Point Hitch:

Rear Type:II/I
Rear lift:2315 lbs [1050 kg]


Power Take-off (PTO):

Rear RPM:540 (1.375)
Engine RPM:540@1800


Dimensions & Tires:

Wheelbase:82.7 inches [210 cm]
Weight:4167 lbs [1890 kg]
Front tire:6.00-16
Rear tire:12.4/11-32
full dimensions and tires ...


T400 Serial Numbers:


how to read serial numbers...



Volvo T400 Power:

Engine:47 hp [35.0 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:mechanical
Cab:Four-post ROPS.


Hydraulics:

Capacity:6.1 gal [23.1 L]
Pump flow:9.25 gpm [35.0 lpm]


Battery:

Number:2
Volts:6
