McCormick Intl MC100 Transmission


McCormick Intl MC100 tractor photo
2000 - 2003
MC Series
Utility tractor
Series:MC90MC100
Transmissions overview
16-speed partial power shift
32-speed partial power shift with creeper
Transmission
Type:partial power shift
Gears:16 forward and 12 reverse
Four power shift gears in three ranges with power shuttle.
Speeds
With 16.9R38 rear tires and 40 kph transmission option.

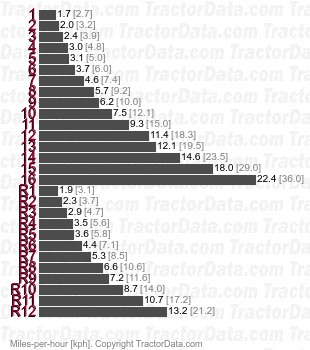

MC100  partial power shift speeds
Transmission
Type:partial power shift with creeper
Gears:32 forward and 24 reverse
Speeds
With 16.9R38 rear tires and 40 kph transmission option. Creeper range speeds shown.

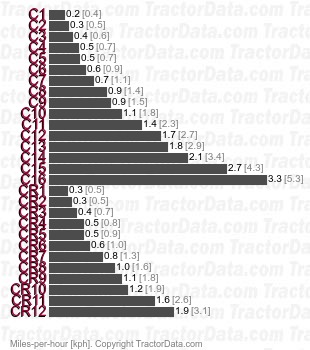

MC100  partial power shift with creeper speeds
