McCormick Intl MC120 Power6 Transmission


McCormick Intl MC120 Power6 tractor photo
2003 - 2007
MC Series
Utility tractor
Series:MC115MC120 Power6MC135
Transmissions overview
16-speed partial power shift
32-speed partial power shift with creeper
Transmission
Type:partial power shift
Gears:16 forward and 12 reverse
Clutch:wet disc
Oil capacity:79.2 qts
75.0 L
Four power shift speeds in four ranges with power shuttle. Available AutoSpeed transmission option with push-button range and power shifting. Available in 30 KPH and 40 KPH gearing.
Speeds
With 18.4R34 rear tires and 40 KPH transmission. Reverse speeds are 15% faster than forward in the same gear.

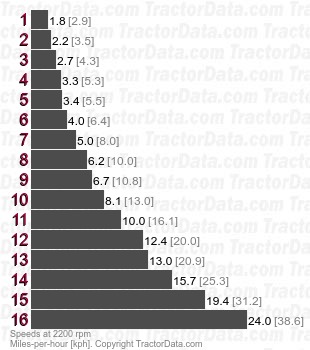

MC120 Power6  partial power shift speeds
Transmission
Type:partial power shift with creeper
Gears:32 forward and 24 reverse
Creeper range option double the available speeds in the transmission.
Speeds
With 18.4R34 rear tires. Reverse speeds are 15% faster than forward in the same gear.

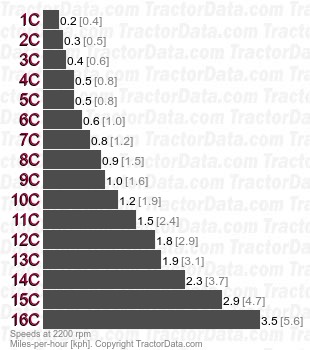

MC120 Power6  partial power shift with creeper speeds
