McCormick Intl C80 Tests
|
|
| OCED Tractor Test 1896 | |||
| |||
| OCED Tractor Test 1896 | |
| Diesel 16-speed 4WD October 1998 - 1998, Link: OCED Tractor Test 1896 file | |
| PTO performance | |
| Power at rated engine speed: | 71.3 hp 53.2 kW |

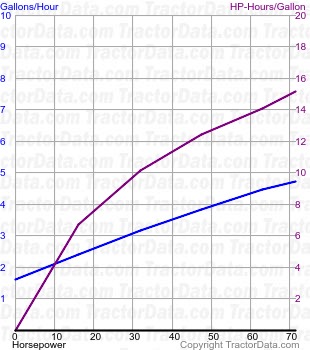

| Fuel use: | 4.7 gal/hour 17.8 l/hour |
| Power at rated PTO speed: | 73.0 hp 54.4 kW |
| Fuel use: | 4.5 gal/hour 17.0 l/hour |
| Drawbar performance | |
| Max power: | 59.3 hp 44.2 kW |
| Fuel use: | 4.7 gal/hour 17.8 l/hour |
| Gear 1-Hi-TA used for power test. | |
| Max pull: | 9530 lbs 4322 kg |
| Gear 1-Lo-DD used for pull test. | |
