Tractors > McCormick Intl > C70

McCormick Intl C70 Transmission



McCormick Intl C70 tractor photo
2001 - 2003
C Series
Utility tractor
Series:C60 ← C70 → C80
C70S ↓
Transmissions overview
8-speed synchromesh
8-speed shuttle
16-speed two-speed power shift
Transmission
Type:synchromesh
Gears:8 forward and 4 reverse
Clutch:dry disc
Speeds
With 16.9-30 rear tires.

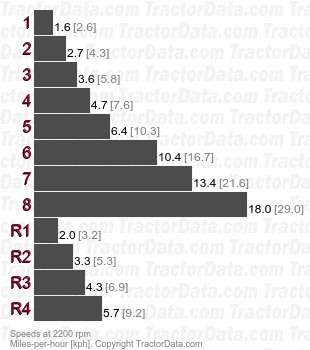

C70 synchromesh speeds
Transmission
Type:shuttle
Gears:8 forward and reverse
Speeds
With 16.9-30 rear tires.

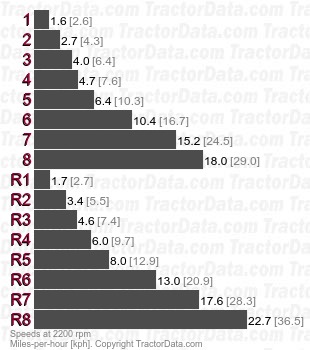

C70 shuttle speeds
Transmission
Type:two-speed power shift
Gears:16 forward and 8 reverse
Clutch:dry disc
