Tractors > John Deere > 8230

John Deere 8230 - tests

John Deere 8230 tractor photo
2006 - 2009   8030 Series
Row-Crop tractor
Previous model:John Deere 8220
Next model:John Deere 8245R
Series next:John Deere 8330
Series back:John Deere 8130
more John Deere 8230 specifications...






OCED Tractor Test 1885:

Nebraska summary:552

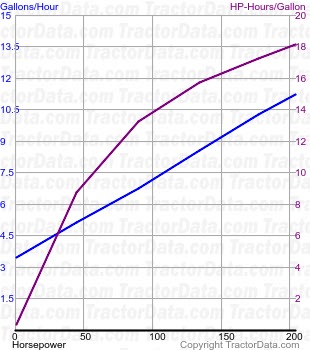

8230 fuel use from test 552
Test Date:September 20 - October 5, 2006
Type:Diesel PowerShift 4WD
PTO power (max):232.51 hp [173.4 kW]
PTO fuel use (max):12.3 gal/hour [46.6 l/hour]
PTO power (rated engine speed):203.66 hp [151.9 kW]
PTO fuel use (engine speed):11.2 gal/hour [42.4 l/hour]
PTO power (rated PTO speed):219.68 hp [163.8 kW]
PTO fuel use (PTO speed):11.7 gal/hour [44.3 l/hour]
Drawbar power (max):180.35 hp [134.5 kW]
Drawbar fuel use (max):11.3 gal/hour [42.8 l/hour]
Drawbar pull (max):24,645 lbs [11178 kg]
Max pull gear:4
Test report:PDF file
