Tractors > SAME > Krypton F 100

SAME Krypton F 100 Transmission



SAME Krypton F 100 tractor photo
2005 - ????
Krypton Series
Agricultural Crawler tractor
Series map:
Krypton F 90
Krypton F 100
64.0kw
69.9kw
Transmissions overview
16-speed shuttle
16-speed creeper
Transmission
Typeshuttle
Gears16 forward and reverse
Four synchronized gears in two ranges with under-drive and mechanical shuttle.
Speeds

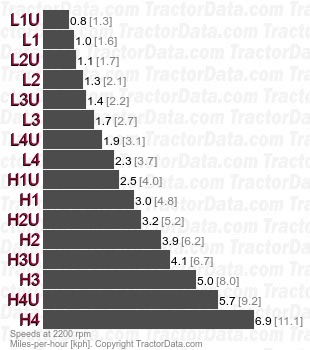

Krypton F 100 shuttle speeds
Transmission
Typecreeper
Gears16 forward and reverse
Four synchronized gears in two ranges with mechanical shuttle and creeper.
Speeds

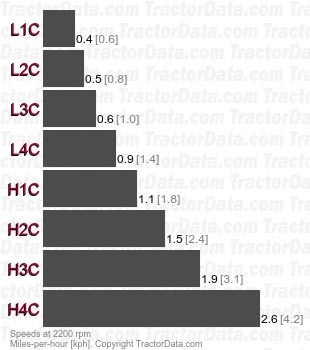

Krypton F 100 creeper speeds
