SAME Explorer II 80

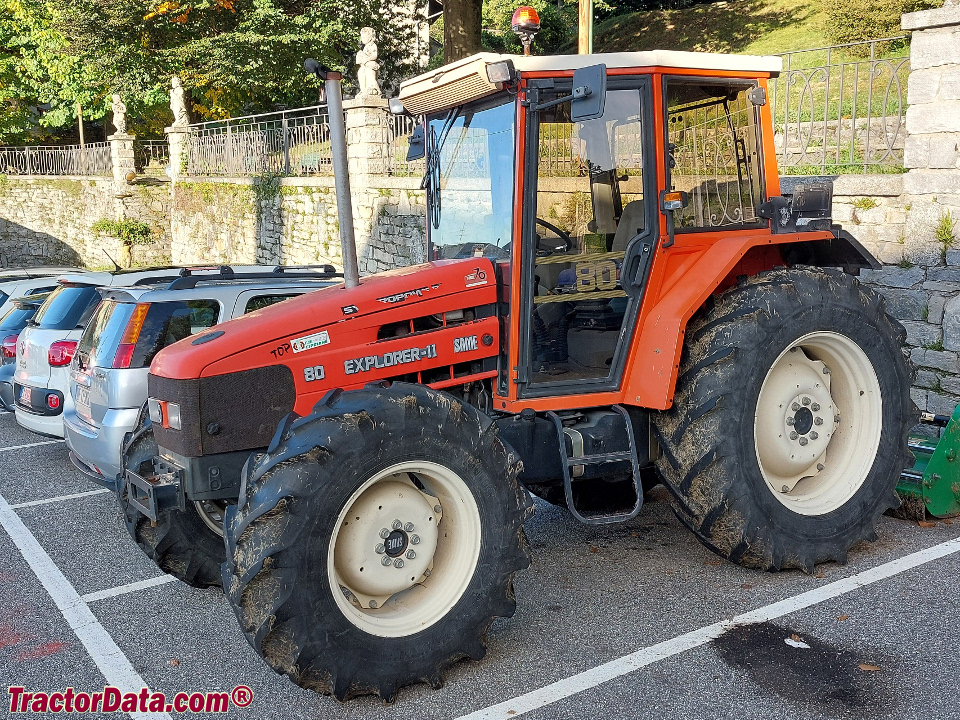

SAME Explorer II 80 tractor photo
1989 - 2003
Explorer II Series
Utility tractor
Series map:
Explorer II 70
Explorer II 80
Explorer II 90
51.0kw
59.0kw
65.0kw
Production
ManufacturerSAME
Utility tractor
Variants
5680similar AGCO Allis model
SAME Explorer II 80 Engine
SAME 4.0L 4-cyl diesel
Fuel tank29.1 gal
110.1 L
Engine details ...
SAME Explorer II 80 Transmissions
15-speed synchronized
20-speed synchronized
30-speed two-speed power shift
40-speed two-speed power shift
Transmission details ...
SAME Explorer II 80 Power
Engine79.1 hp
59.0 kW
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear *Electro-hydraulic optional.
Power steering
Hydraulic wet disc brakes
Cab standard with heat. Air-conditioning optional.
Photos
No photos of the SAME Explorer II 80 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pump flow11.1 gpm
42.0 lpm
Tractor hitch
Rear TypeII
Rear lift7607 lbs
3450 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540/1000 (1.375)
Engine RPM540@2199
540E@1717
1000@2450
1000E@1913
Front PTOindependent OptOptional
Front RPM1000
Dimensions & Tires
2WD Wheelbase94.9 inches
241 cm
4WD Wheelbase91.3 inches
231 cm
Weight6791 to 7385 pounds
Front tire10.00-16
2WD Rear tire16.9/14-34
Full dimensions and tires ...
Electrical
Charging systemalternator
Battery volts12
