| | 1989 - 2003 |
| Explorer II Series | | Utility tractor |
|
| Transmissions overview |

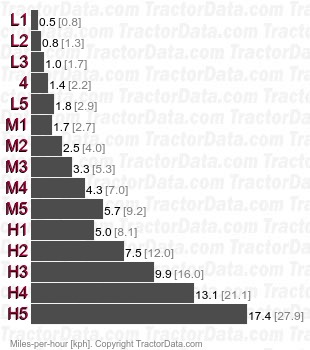

| 15-speed synchronized |
| 20-speed synchronized |
| 30-speed two-speed power shift |
| 40-speed two-speed power shift |
| Transmission |
| Type | synchronized
|
| Gears | 15 forward and reverse
|
| Clutch | hydraulic dry disc
|
| Speeds |
|
| Transmission |
| Type | synchronized
|
| Gears | 20 forward and reverse
|
| Transmission |
| Transmission | Syncro Power
|
| Type | two-speed power shift
|
| Gears | 30 forward and reverse
|
| Transmission |
| Transmission | Syncro Power
|
| Type | two-speed power shift
|
| Gears | 40 forward and reverse
|
| Page information |
| Contact: Peter Easterlund |
| Updated on October 21, 2022 |
| Copyright 2022 TractorData LLC |
