SAME Explorer 80

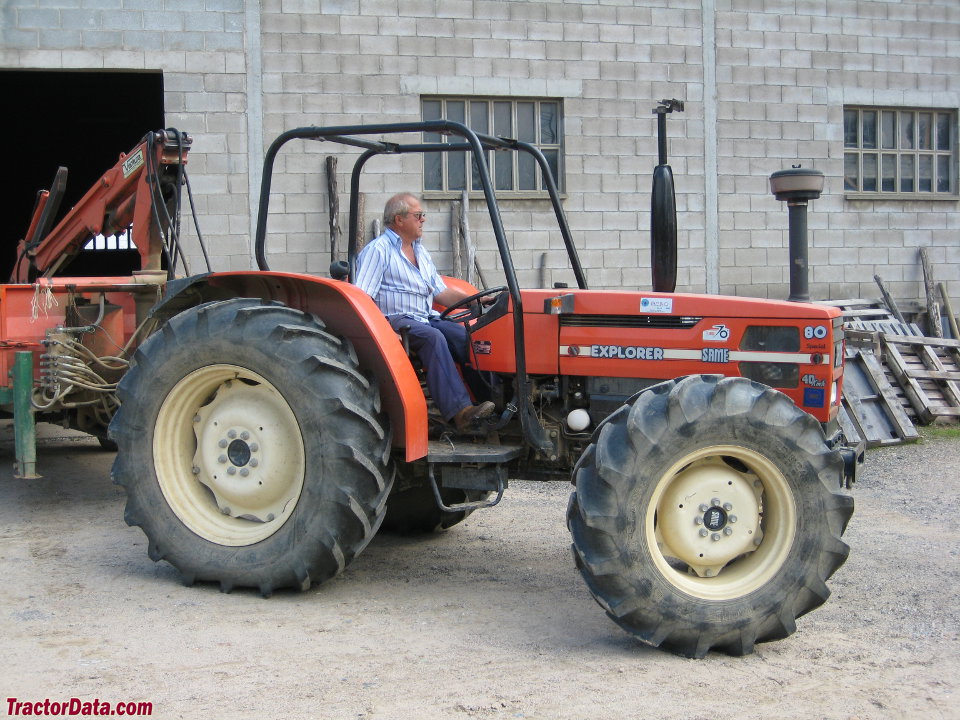

SAME Explorer 80 tractor photo
1986 - 1990
Explorer Series
Utility tractor
Explorer 75
Series:Explorer 80Explorer 80Explorer 90
Production
Manufacturer:SAME
Type:Utility tractor
SAME Explorer 80 Power
Engine:80 hp
59.7 kW
SAME Explorer 80 Engine
SAME 4.0L 4-cyl diesel
Fuel tank:29.1 gal
110.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:hydraulic wet disc
Cab:Four-post ROPS. Available cab with optional heater.
Transmissions:12-speed
 24-speed
 20-speed
Transmission details ...
Hydraulics
Pressure:2602 psi
179.4 bar
Pump flow:9.5 gpm
36.0 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:7563 lbs
3430 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540/1000 (1.375)
Dimensions & Tires
2WD Wheelbase:95.1 inches
241 cm
4WD Wheelbase:91.3 inches
231 cm
Weight:6173 to 7275 pounds
Front tire:7.50-18
2WD Rear tire:16.9/14-34
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:64
Battery volts:12
