SAME Explorer 80 Transmission


SAME Explorer 80 tractor photo
1986 - 1990
Explorer Series
Utility tractor
Explorer 75
Series:Explorer 80Explorer 80Explorer 90
Transmissions overview
12-speed
24-speed
20-speed
Transmission
Gears:12 forward and reverse
Clutch:hydraulic dry disc
Four gears (1-4) in three ranges.
Speeds
With 16.9/14-34 rear tires.
Explorer 80   speeds
Transmission
Gears:24 forward and 12 reverse
Four gears (1-4) in three ranges with additional two-speed mini-reduction range shift in forward.
Speeds
With 16.9/14-34 rear tires.
Explorer 80   speeds
Transmission
Gears:20 forward and reverse
Five gears (1-5) in four ranges.

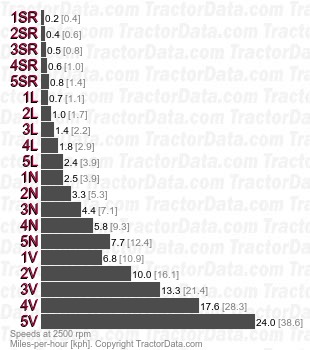

Speeds
With 16.9/14-34 rear tires.
Explorer 80   speeds
