| 1986 - 1990 |
Explorer Series | Utility tractor |
|
Transmissions overview |
12-speed |
24-speed |
Transmission |
Gears: | 12 forward and reverse
|
Clutch: | hydraulic dry disc
|
Four gears (1-4) in three ranges. |

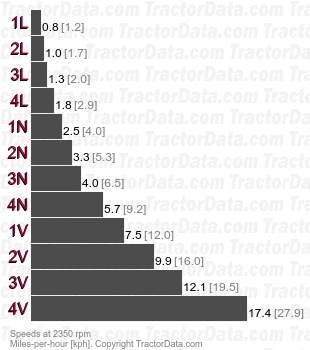

Speeds |
With 16.9/14-30 rear tires. |
|
Transmission |
Gears: | 24 forward and 12 reverse
|
Four gears (1-4) in three ranges with additional two-speed mini-reduction range shift in forward. |
Transmission |
Gears: | 24 forward and reverse
|
Five gears (1-5) in four ranges. |
