SAME Explorer 65 Transmission
|
|
| Series: | Explorer 55 ← | Explorer 65 | → Explorer 75 |
| Explorer 70 ↓ |
| Transmissions overview | |
| 12-speed | |
| 24-speed | |
| 15-speed |

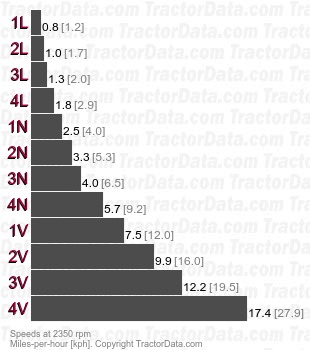

| Transmission | |
| Gears: | 12 forward and reverse |
| Clutch: | hydraulic dry disc |
| Four gears (1-4) in three ranges. | |
| Speeds | |
| With 16.9/14-30 rear tires. | |
|

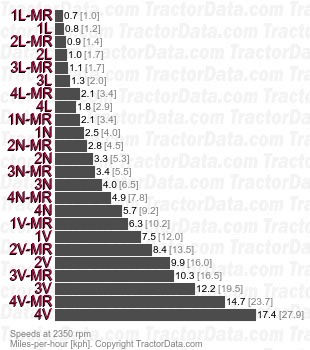

| Transmission | |
| Gears: | 24 forward and 12 reverse |
| Four gears (1-4) in three ranges with additional two-speed mini-reduction range shift in forward. | |
| Speeds | |
| With 16.9/14-30 rear tires. | |
|

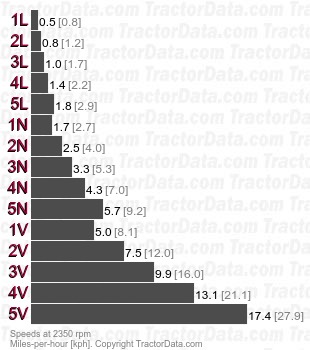

| Transmission | |
| Gears: | 15 forward and reverse |
| Speeds | |
| With 16.9/14-30 rear tires. | |
|
