Tractors > Farmtrac > 520

Farmtrac 520

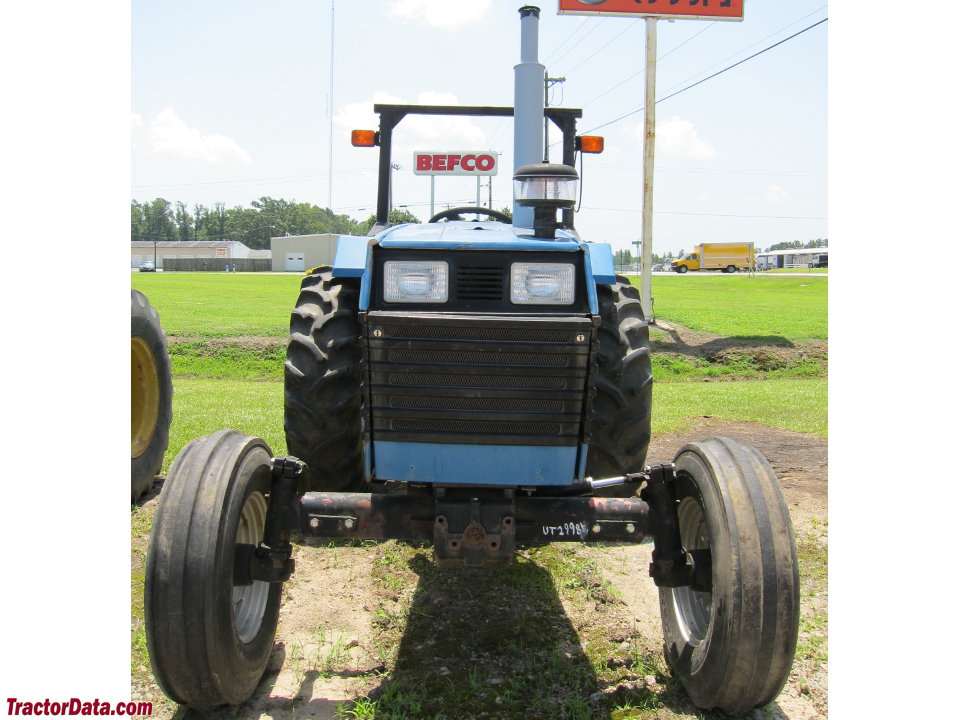

Farmtrac 520 tractor photo
Utility tractor






Production:

Distributor:Farmtrac
Manufacturer:Escorts
Factory:Faridabad, India


Farmtrac 520 Engine:

   2.8L 3-cyl diesel
full engine details ...


Capacity:



3-Point Hitch:

Rear Type:II/I
Rear lift:2645 lbs [1199 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540


Dimensions & Tires:

Weight:4220 to 4760 pounds
Front tire:7.5-16
Rear tire:14.9-28
full dimensions and tires ...


520 Serial Numbers:


- Serial numbers unknown -



Farmtrac 520 Power:

Engine:52 hp [38.8 kW]
PTO (claimed):46 hp [34.3 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Cab:Two-post ROPS.


Hydraulics:

Pump flow:9 gpm [34.1 lpm]


Electrical:

Ground:negative
Charging amps:36


Battery:

Number:1
Cold-cranking amps:600
Volts:12
